Volvo B18 Rebuild, common faults & everything you need to know

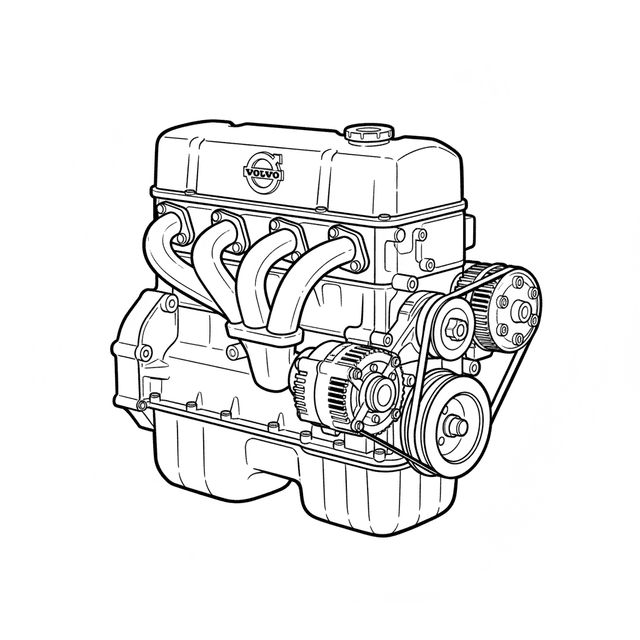

The B18 in brief

All measurements and data for the B18 series. Read from Volvo's original documentation.

Power and torque figures are identity data for the engine variant (output), not tightening torque. B18B/B18D are SAE gross values from the Volvo factory manual; B18A is a guide value. Power is given as an SAE/DIN range across the production years.

Torque specs

Verified against the Volvo factory manual TP 10115/1 (B18B/B18D) and the B18A green-book (Group 21). Volvo gave the torques in kgm; the Nm values below are converted from the factory documentation. All values apply to clean threads.

Cylinder head & valvetrain

Engine block & bottom end

Gear drive & timing

Intake, ignition, other

NOTE - Head bolts: The B18 uses a single-step factory method, 8,5-9,5 kgm (83-93 Nm), tightened in sequence from the centre outwards per the factory 10-bolt diagram. There is no angle tightening (torque-to-yield) on the B18. Re-torque warm if needed; a warm re-torque towards the upper end of the range (towards 93 Nm) is within the factory spec. The later 200-series-era B20 uses a completely different 3-step method - it does NOT apply to the B18. Do not lubricate the threads. Meksta always fits new bolts on disassembly. The reason: stress accumulation in old bolts is invisible and can give a false tightening torque.

Note - gear-driven camshaft: The B18 has a GEAR-DRIVEN camshaft (gear-driven) - there is no timing belt and no timing chain. The drive runs directly tooth to tooth via a steel gear on the crankshaft (21 teeth) and a fibre/thermoset gear on the camshaft (42 teeth, for quieter running). The fibre gear is the engine's known weak point at high mileage. Check the gear backlash at rebuild; the maximum allowed is 0,12 mm. The front fixing is a nut, not a chain tensioner.

Note - spark plugs: The B18 factory value is 3,8-4,5 kgm (37-44 Nm) for the Bosch W175 T1. For the hotter plug, the Bosch W200 T35, the factory gives a lower torque, 3,5-4,0 kgm (34-39 Nm). Never oil the threads. Plug gap 0,7-0,8 mm.

Note - oil pan vs drain plug: The value 0,8-1,1 kgm (8-11 Nm) applies to the pan bolts (pan to block), NOT the oil drain plug. The factory gives no separate torque for the drain plug, so we have deliberately left it out.

The cylinder head in detail

Cylinder head design and valve data. Source: Volvo factory manual TP 10115/1 (B18B/B18D) and the B18A green-book.

The B18 has a cast-iron cylinder head on a cast-iron block - the same material in head and block, which gives even thermal expansion and makes the design less prone to head gasket failure than later aluminium heads. The head is robust but requires a flatness check at rebuild and new valve guides at high mileage.

Valves

Common cylinder head faults on the B18

• Worn fibre cam gear - the thermoset gear on the camshaft wears or cracks at high mileage. Symptoms: increasing gear backlash, whining/rattling from the cam gear. Remedy: replace the cam gear, check backlash against 0,12 mm.
• Valve guide wear - at high mileage the guides develop oil clearance. Symptoms: blue smoke at cold start, oil consumption. Remedy: replace the guide, new valve reaming.
• Worn valve seats - old B18s were often run on leaded petrol; when switching to unleaded the exhaust seats can wear. Remedy: hardened valve seat inserts.
• Worn camshaft and rocker arms - from oil starvation or long service intervals. Symptoms: ticking noise, uneven idle. Remedy: replace the camshaft + recondition the rocker shaft assembly.
• Leaking head gasket - unusual on the B18 thanks to cast iron against cast iron, but occurs after overheating. Remedy: resurfacing + new gasket, tighten the head to 83-93 Nm.

B18 rebuild prices

Prices based on B18 specifications: 4 cyl, 84 mm bore, 8 valves, 5 main bearings. All prices exclude VAT and parts.

B18 camshaft profiles

Questions & answers about the B18

What we hear most often from B18 owners.
